4D Construction Sequencing
& Logistics Simulation
Beyond the three dimensions of design lies the fourth dimension of time, where the true complexity of construction is revealed. My work in 4D Simulation focuses on transforming static schedules into dynamic, visual execution plans. On projects of unprecedented scale like the NEOM Trojena Water Transmission, I utilize 4D modeling as a strategic laboratory to test and validate construction methods for the project's most critical assets. By synchronizing the digital model with real-time planning data, I provide project stakeholders with a transparent view of the construction lifecycle, ensuring that the transition from design to site installation is seamless and risk-averse.
Virtual Rehearsal of Critical Infrastructure Installations

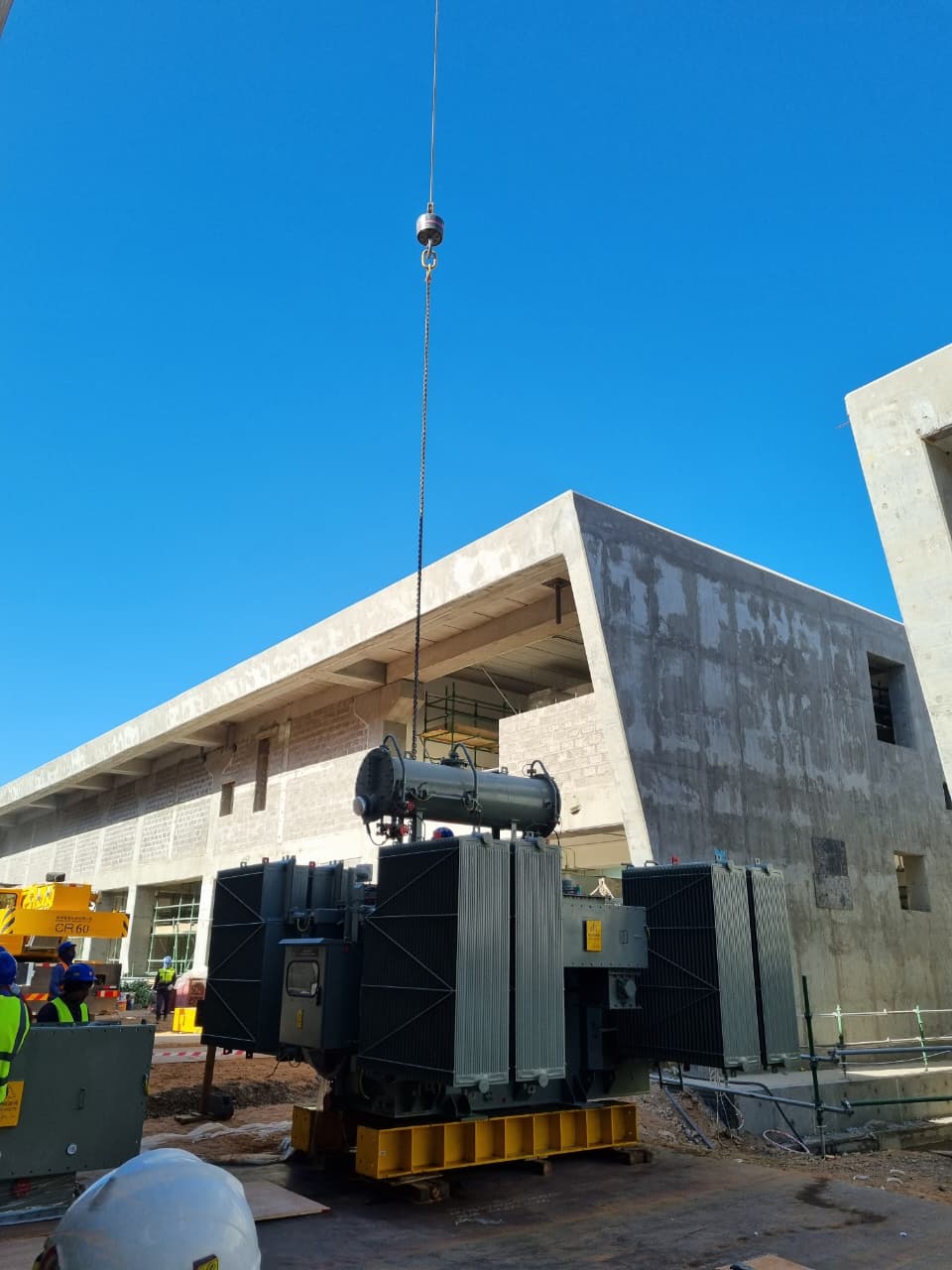

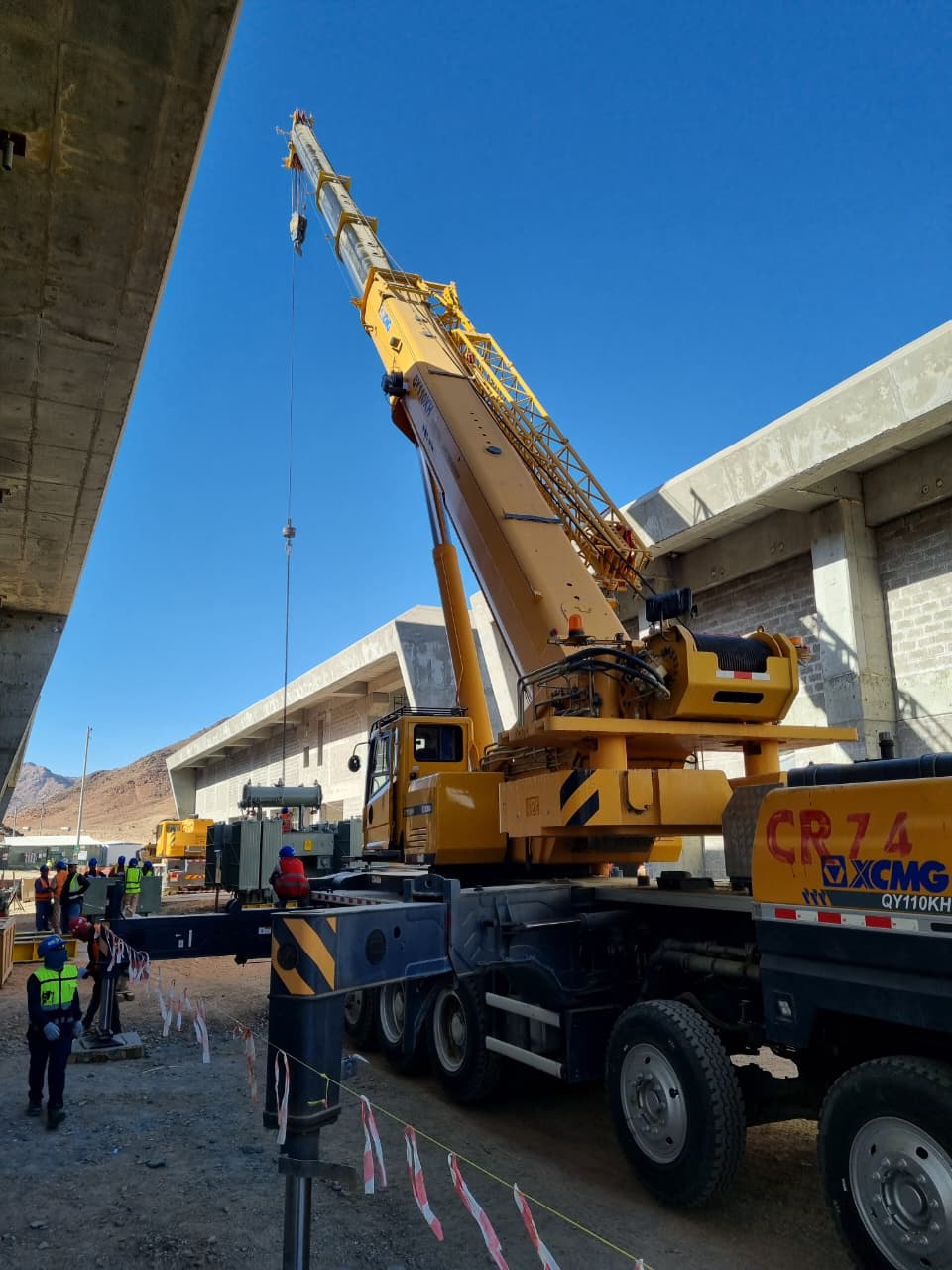

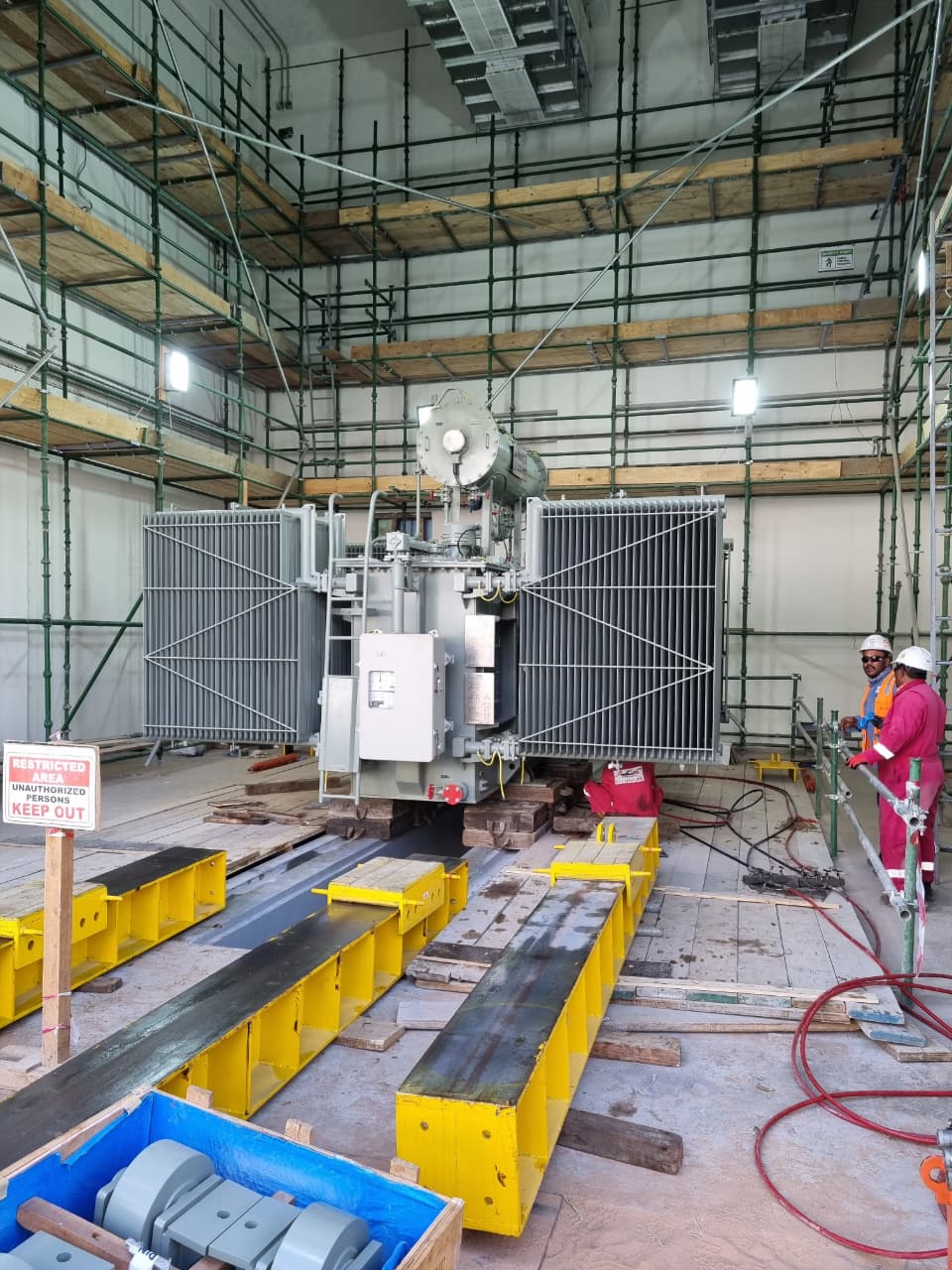

Precision in the installation of high-lead-time, massive-scale items is paramount for project success. For the Trojena Water Transmission project, I developed specialized 4D simulation videos to virtually rehearse the complex installation methods for the project’s most critical assets, including the surge vessels, overhead cranes for the pump station, and the main electrical transformers. These simulations allowed the team to analyze clearances, rigging paths, and equipment positioning in a risk-free digital environment. The accuracy of these 4D sequences was later validated on-site, as shown in the accompanying photos of the actual transformer installation following the exact simulated methodology.
I developed a sophisticated 4D simulation for a Trojena pump station that directly integrated the Oracle Primavera P6 time schedule with the BIM model. This synchronization transformed a static list of dates into a visual progress engine, allowing the project team to simulate the entire construction lifecycle in real-time. This 4D analysis was instrumental in the decision to modify the project’s top roof design, providing a clear visual justification for the change. By rehearsing the schedule digitally, we were able to identify potential sequence overlaps and ensure the new roof design integrated seamlessly into the existing construction timeline.
For the Spine Water Transmission Culvert, I developed a specialized 3D and 4D simulation to support a critical Variation Order (VO) regarding pipe installation in complex wadi areas. The simulation was engineered to prove the feasibility and safety of transitioning from an overhead crane system to a more agile lifting vehicle approach. By visualizing the equipment’s reach, site clearances, and the installation sequence within the restrictive wadi terrain, I provided the technical evidence needed to validate this change in methodology. This digital proof facilitated project approvals, ensuring a more cost-effective and site-appropriate solution for one of NEOM’s most challenging infrastructure corridors.
As part of my "Modeling and Simulation" course at the American University in Cairo (AUC), I deliver specialized lectures on the advanced applications of 4D BIM for site management. A key focus of this curriculum is the implementation of 4D Temporal Clash Detection, where students learn to identify spatial conflicts that only exist at specific points in time. By simulating the dynamic movement of heavy equipment and construction activities, this course empowers future engineers to proactively resolve logistical overlaps and safety risks before physical mobilization begins.
